What is 7DS?

A multi-telescope array built to find the optical counterparts of gravitational-wave events — and, in the process, to map the southern sky in forty colors.

20Telescopes16 online
40Medium bands35 installed
2023First light
ChileEl Sauce Obs.
Motivation

One counterpart in nine years

On 17 August 2017 the merger of two neutron stars, GW170817, was seen in gravitational waves and then found in light. It remains the only gravitational-wave event with a confirmed electromagnetic counterpart. The reason is not that such mergers are rare but that their counterparts are hard to catch: a kilonova peaks near absolute magnitude −15 to −17 and fades by about half a magnitude a day, and the sky region a detector network reports for it covers hundreds to thousands of square degrees. Only about a dozen gravitational-wave sources have ever been localized to better than 100 square degrees — and a patch that size is expected to contain of order a hundred unrelated transients over a week.

That is the problem 7DT was built to solve. Searching an area that large quickly requires a wide field and fast slewing; separating a kilonova from the supernovae, novae and detector artifacts inside it requires spectral information. Conventional practice is to image first and follow up spectroscopically, which costs nights on large telescopes and time the source does not have. 7DT collapses the two steps into one: every exposure already carries a low-resolution spectrum of every source in the field.

Sky areas compared: a GW170817-sized localization region set against the fields of view of 7DT, ZTF, SkyMapper and LSST
The problem, to scale A gravitational-wave localization set against the field of view of 7DT and of other survey telescopes.
Approach

Twenty small telescopes instead of one large one

The design answer is an array rather than a single large telescope. Twenty commercial off-the-shelf 50-cm units, each carrying a different share of a forty-filter medium-band set, cost a fraction of a purpose-built instrument, can be brought on line in stages, and can be reconfigured between science goals without touching hardware. Pointed together they build a spectrum; pointed apart they tile 25 square degrees at once. Other multi-telescope arrays — GOTO, BlackGEM, LAST — made the same bet on off-the-shelf optics; 7DT is distinguished by what it puts in front of them.

The 7-Dimensional Telescope (7DT) is a multi-telescope array of twenty 50-cm commercial off-the-shelf telescopes at El Sauce Observatory, Chile, designed to identify the electromagnetic counterparts of gravitational-wave events. Its defining feature is a set of 40 medium-band filters of 25 nm width spanning 400 to 900 nm, distributed across the array so that the full set is covered in a small number of exposures. This yields IFU-like data at low spectral resolution (R = 30-70) over approximately 1.25 square degrees per pointing — imaging that behaves like spectroscopy, over an area no spectrograph can reach.

The 7-Dimensional Telescope array at El Sauce Observatory
The array DeltaRho 500 units installed at El Sauce Observatory, Río Hurtado Valley, Chile.
Origins

Where the project came from

7DT is designed, built and operated by the Center for the Gravitational-wave Universe at Seoul National University, with support from the National Research Foundation of Korea, funded by the Korean government (MSIT). The Center came to the project through GECKO, the Gravitational-wave Electromagnetic Counterpart Korean Observatory — a network of existing Korean-accessible telescopes that followed up gravitational-wave alerts during the O3 observing run. Its campaign on GW190425, the first binary neutron star merger of that run, covered 621 candidate host galaxies inside a 7,460 square-degree localization and found no kilonova. The limits of working with borrowed time on telescopes not designed for the task were the direct argument for building one that was.

Since first light in October 2023 the array has grown from twelve to sixteen operational units, and from twenty to thirty-five installed medium-band filters, against a design of twenty telescopes and forty filters. Commissioning has reached closure, robotic operation runs unattended, and the science program — the 7-Dimensional Sky Survey (7DS) — is under way on two of its three tiers.

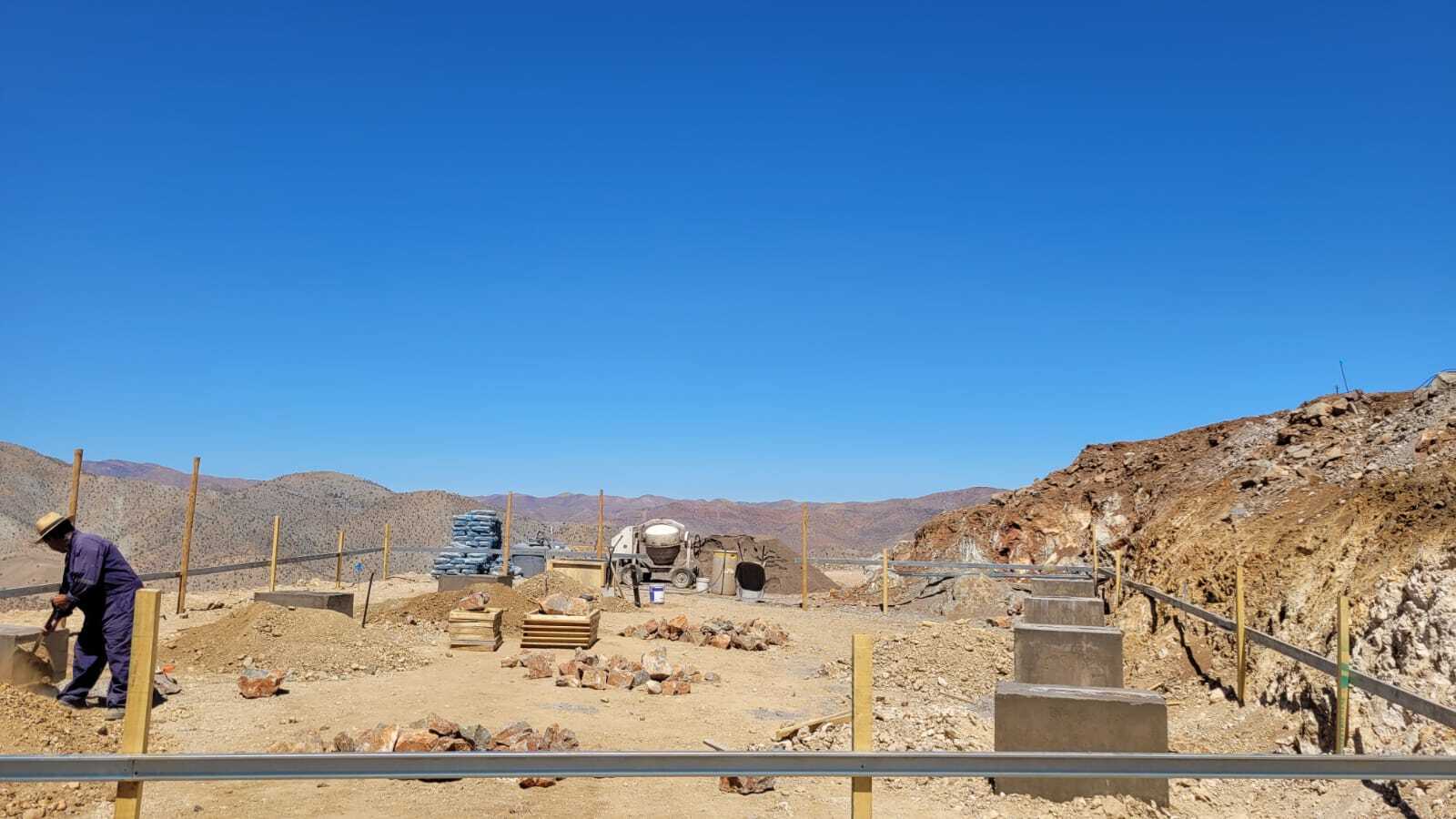

Site preparation and pier foundations above the Río Hurtado Valley
Before the telescopes Pier foundations above the Río Hurtado Valley, before the enclosure was erected.

Funding sources are set out in full on the funding page.

History

From first light to survey operation

  1. 2019–2020

    Before 7DT

    GECKO, the Gravitational-wave Electromagnetic Counterpart Korean Observatory, follows up gravitational-wave alerts during the O3 run with existing telescopes. Its campaign on GW190425 covers 621 candidate host galaxies inside a 7,460 deg² localization and finds no kilonova.

  2. Oct 2023

    First light

    The first units see the sky at El Sauce Observatory in the Río Hurtado Valley, Chile. Commissioning begins with twelve of the twenty planned telescopes on sky.

  3. Feb 2024

    First images released

    The Center for the Gravitational-wave Universe publishes the first public set of 7DT images.

  4. Jul 2024

    Reference Imaging Survey begins

    Routine survey operation starts on the wide-area tier of 7DS, covering roughly 23,000 deg² south of Dec +20° with a single visit per tile.

  5. Aug 2024

    The array runs itself

    RTCSpy takes over nightly operation. Since then the array has acquired some 1.75 million images under fully unattended operation.

  6. Dec 2024

    Sixteen units, automated response

    Four more DeltaRho 500 units enter routine operation, and automated target-of-opportunity ingestion goes live — the scheduler can now interrupt the night and begin a follow-up exposure in under a minute.

  7. Apr 2025

    Intensive Monitoring Survey begins

    Seven tiles at the south ecliptic pole, chosen to overlap the SPHEREx Deep Field South, are observed every available night.

  8. Late 2025

    Thirty-five medium bands

    Fifteen further medium-band filters are installed, extending coverage to 375–875 nm and advancing toward the designed complement of forty.

  9. Jun 2026

    A working observatory

    Final commissioning closes. The facility is reported as an operating observatory rather than a project under commissioning, with two of the three 7DS tiers under way.

  10. Ahead

    Completing the array

    The Wide-area Time-domain Survey commences in 2026. Four remaining units and five remaining filters complete the design, and the first full cycle of the Reference Imaging Survey is anticipated by the end of 2027.

The name

Seven dimensions

The name counts the axes of the data. Two of position on the sky, one of brightness, one of wavelength and one of time come directly from the observations; distance and radial velocity follow from the medium-band spectral energy distribution. A single visit therefore records not just where a source is and how bright it is, but what it is made of and how it is moving.

  • 01

    Right ascension

  • 02

    Declination

  • 03

    Distance

  • 04

    Radial velocity

  • 05

    Brightness

  • 06

    Wavelength

  • 07

    Time

Program

What the survey delivers

RIS

Reference Imaging Survey

Area
23,000 deg²
Cadence
Single visit
Depth
19.1 mag
Observing
WTS

Wide-area Time-domain Survey

Area
800–1,200 deg²
Cadence
10–14 days
Depth
22.2 mag*
Commencing 2026
IMS

Intensive Monitoring Survey

Area
8.5 deg²
Cadence
1 day
Depth
23.6 mag*
Observing

*WTS and IMS depths are cumulative over the planned five-year operation, not the depth of a single visit. RIS depth is that of one visit.
